Meet Play-Out XL-Signage

Play-Out XL-Signage solution can be set up in any size. Depending on the users needs, a management system can be utilized and users can control several local systems no matter where on the globe they are located.

Play-Out Signage handles all the common video formats, image, dynamic media like a URL or website –this enables users to display a really powerful combination of for example instant updated web content and 1080p video.

Play-Out Signage has been designed as a cost effective professional network program that enables the display of dynamic and creative visuals ideal for information, advertisements and broadcasting.

XL-Signage Multi Display

XL-Signage supports advanced multiple monitor technology delivering a massive desktop in a super-high resolution. Is the ideal solution for powering display walls designed to attract, inform and engage audiences

XL Signage adapts the video card resolution and can be used in any size or resolution.

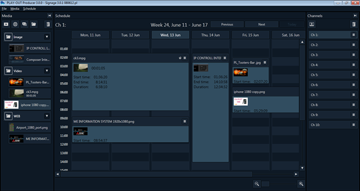

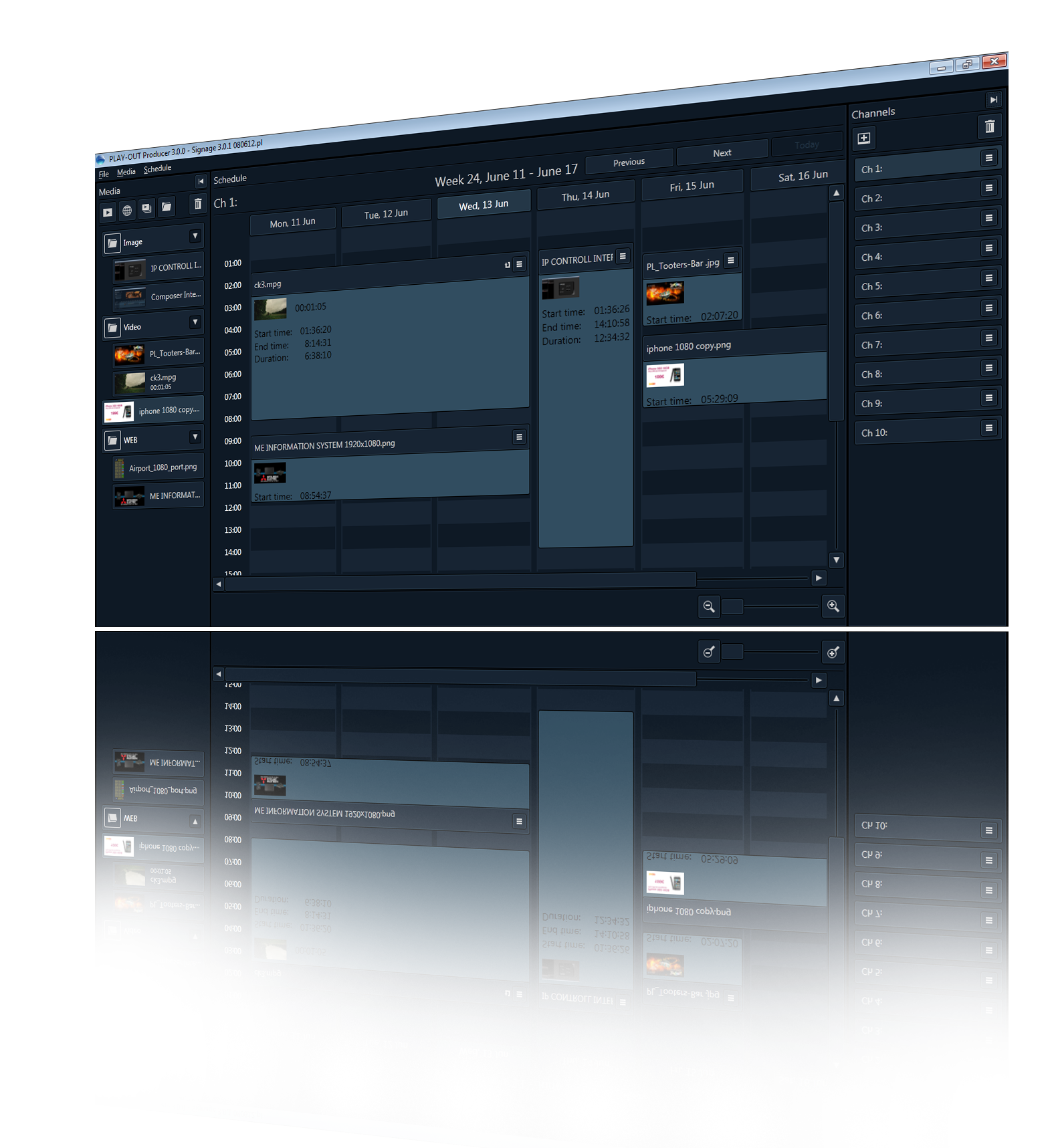

XL-Signage Scheduler

The Scheduler has a very user friendly GUI. Arranging media to a display channel is easy by simple “drag-and drop” operation. Each display channel can easily be set up individually in terms of resolution and orientation.

Users can create content and playlists centrally and then upload to an FTP server from which each display client downloads its specific information.

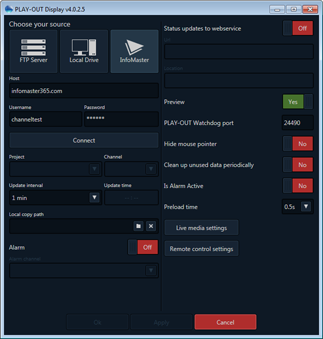

XL-Signage Display Client

Signage client has three different playback functions.

playback via InfoMaster365
playback via FTP server
playback via Local Drive using a exported show.

When Play-Out Signage is connected to InfoMaster 365 can also functions as Alarm, Alert channel be used

1.Schedule & Content

Play-Out’s Signage scheduler offers you all the necessary tools to create channels and arrange content, playlist and scheduling for your information system. When a show is complete, the last step is to export the show and media to the FTP server or to disk.

2. Content Distributiont

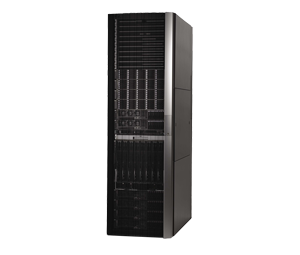

On the FTP server the show and media is stored. Play-Out display players are requesting the show and media from the FTP server remotely. The same content can be shared between several Play-Out display players.

3. Content Visualization

Each Play-Out display player is setup to view a channel. The display player is asking the FTP server for the show and media. Web based media is published direct from a WEB server and a user can update the web content for the displays in an instant.

Media Handling
- Video: MPEG2, H264, VMW etc. SD, 720p, 1080p, 2160p, 5760x1080p, 7680x1080p
- Image: JPG, PNG Any size of image
- WEB / URL(interactive, flash).Any size of canvas
- Streaming video, IP video (via InfoMaster365)
- Live source: DVI, HD-SDI (via InfoMaster365)
- Media element: Text, RSS (via InfoMaster365)
Production

Working with your current production tools like Adobe Photoshop, After Effects.
External Control

A Signage channel can be change via an external control system such as Play-Out MasterControl 365, Play-Out IP Control, Crestron®or AMX®.
Interaction

Interact live or arrange the animation through key frame.
Monitoring

Signage client can be monitored by Watchdog and Master Control 365.
- status is broadcasted to MasterControl365
- if a crash occurs in Signage will Watchdog restarted signage program automatically
